Programma Magnus

Step up Transformer

Programma Magnus
Programma Magnus


When power systems are put into operation or when faults occur, it becomes necessary to check the instrument transformers to make sure that they are providing test instruments and protective relay equipment with the correct outputs.

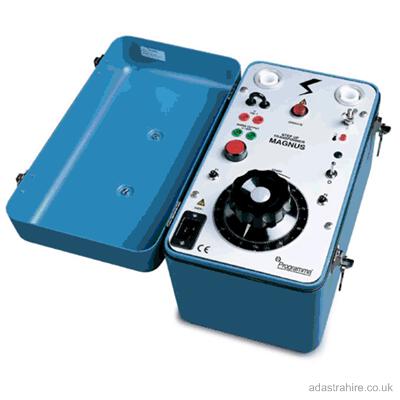

The MAGNUS is used to prepare excitation curves for instrument transformers quickly and easily. It can also be used to demagnetize current transformer cores and to conduct turn-ratio tests on voltage transformers. Even though it weighs only 16 kg (35 lbs), it provides 1 A at 2.2 kV. Two-hand control enhances personal safety.
