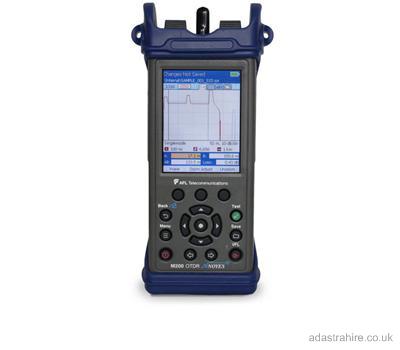

Noyes M200

OTDR

Noyes M200
Noyes M200

Features

  • Handheld, 0.9kg
  • 850/1300/1310/1550 nm
  • Integrated Visible Fault Locater
  • Auto Fiber Identification (when used with a Noyes Test Receiver)
  • Auto dual-wavelength operation
  • Li-Ion battery with operating time > 6 hr, tool-free access, internal recharging
  • Internal, non-volatile memory (>500 traces) and CompactFlash┬« removable media ( >1000 traces)
  • USB data transfer
  • Standard Bellcore/Telcordia┬« SOR file format
  • Transflective, (indoor/outdoor) touch screen display
  • Dedicated Test and Save keys
  • Data entry using physical keys or touch-screen
  • Shock-absorbing boot with integrated quick-release adapter

Key Specifications:

  • Dynamic range > 26 dB
  • Up to 16,000 data points
  • Event Dead Zone (typ.): 1.5 m
  • Sample spacing to 0.25 m
  • Attenuation Dead Zone (typ.): 9 m
  • Pulse width settings from 10 ns to 10 us
  • VFL "red laser" (650 nm)
  • Weight < 0.9 kg (2 lb)
