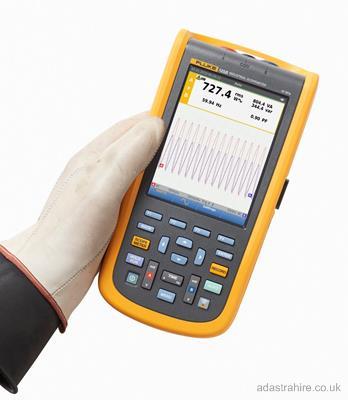

The 120B Series Industrial ScopeMeter test tools include innovative functions designed to help technicians troubleshoot faster and get the answers they need to keep their systems up and running. Display waveforms with Connect-and-View™ trigger and setup technology and automatically view related numerical measurements using Fluke IntellaSet™ technology, all without making manual measurement adjustments. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.
- Dual-input digital oscilloscope and multimeter 40 MHz or 20 MHz oscilloscope bandwidth
- Two 5,000-count true-rms digital multimeters Connect-and-View™ trigger simplicity for hands-off operation
- IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
- Dual-input waveform and meter reading recorder for trending data over extended periods
- Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz Shielded test leads for oscilloscope, resistance and continuity measurements Resistance, continuity, diode and capacitance meter measurements
- Power measurements (W, VA, VAR, PF, DPF, Hz) Voltage, current and power harmonics Check Industrial networks with BusHealth physical layer tests against defined reference levels Save or recall data and instrument setups
- Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures.
- External optically isolated USB interface to transfer, archive and analyse scope or meter data
- Rugged design to withstand 3g Vibration, 30g shock, and rated IP51 according to EN/IEC60529 Highest safety rating in the industry: safety rated for CAT IV 600 V Li-Ion rechargeable battery, seven-hours operation (with four-hour charge time)
