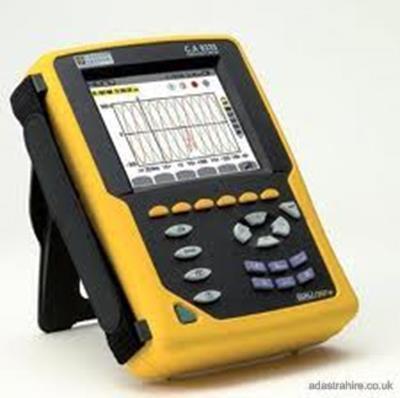

The Qualistar Plus has all the functions usually found on top-of-the-range laboratory instruments. It is a versatile, easy-to-use , high performance power analyser ideal for engineers and technicians seeking all the functions of an electrical network analyser in a portable, battery-powered instrument.
- Real-time display of wave forms (4 voltages and 4 currents)
- RMS voltage and currents per half-period
- Intuitive use
- Automatic recognition of the different types of current sensors
- Integration of all the DC components
- Measurement, calculation and display of the harmonics up to the 50th order, along with the phase information
- Calculation of Total Harmonic Distortion (THD)
- Capture of transients per sample (1/256th of a period)
- Display of phasor diagram
- Measurement of VA, W and var power values (total and per phase)
- Measurement of VAh, Wh and varh energy values (total and per phase)
- Calculation of the K-Factor
- Calculation of the cos displacement power factor (DPF) and the power factor (PF)
- Capture of up to 300 transients
- Flicker calculation
- Unbalance calculation (current and voltage)
- Monitoring of the electrical network with setting of alarms
- Back-up and recording of screenshots (image and data)
- Software for data recovery and real-time communication with a PC
- Recording and export onto PC C.A 8335 Power & Quality Analyser Recorder and analyser for measurements on electrical power networks
