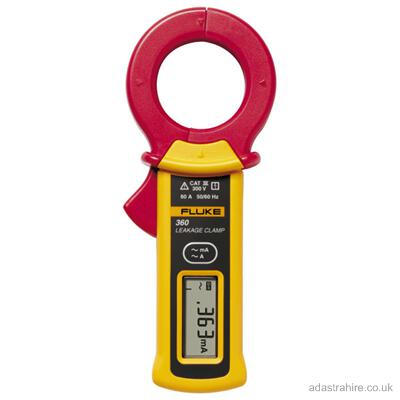

The Fluke 360 leakage meter is designed for non-invasive checks of insulation condition without powering down the installation or disconnecting equipment
The jaw design of the Fluke 360 AC Leakage Current Clamp Meter eliminates the influence of adjacent current conductors, and minimizes the effects of external magnetic fields, even at low currents.
Electrical Specification
Specifications at
23 ± 5 ºC, 80 % RH max
Accuracy
(% readout + value of least significant digit)
3 mA
Resolution: 0.001 mA
Accuracy: 1% + 5
Max Permissible current: 60 A rms
30 mA
Resolution: 0.01 mA
Accuracy: 1% + 5
Max Permissible current: 60 A rms
30 A
Resolution: 0.01 A
Accuracy: 1% + 5
Max Permissible current: 60 A rms
60 A
Resolution: 0.1 A
Accuracy: 5% + 5
Max Permissible current: 60 A rms
